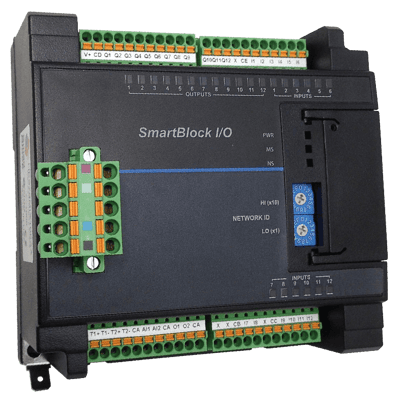

SmartBlock (HE579DIQ881)
Brand: HornerSmartBlock I/O is complementary to SmartStix I/O, providing analog and specialty modules for CsCAN.
SmartBlock is compatible with X-series OCS/RCS Products (XLe, XLt, XL6, NX, QX, RX, RCX) and includes a 5-pin double CsCAN plug and Removable Field Wiring Terminals.
Specifications
Brand
Bus Protocol
- CsCAN
Bus Connector
- Dual 5-Pin Removable Terminal
Maximum Distance
- 1500 metres
Maximum Number of Nodes
- 253
Power Range
- 10-30 Vdc
Temperature
- Operating: 0° to +60° C
- Storage: -10° to +60° C
Relative Humidity
- 5 % to 95 %, Non-Condensing
Module I.D. Configuration Method
- Dual Rotary Switches
Outputs Per Module
- 8
Commons Per Module
- 1
Output Type
- Sourcing, active pull-down
Maximum Output Current Per Point
- 2.5 A
Maximum Total Output Current
- 10 A
Output Supply Voltage (VS)
- 9-30 Vdc
Response Time
- Network Time + 10 ms
Voltage Drop at Rated Current
- 1 V
Protectio
- Short Circuit, Overtemp, Automatic Rese
Maximum Switching Rate
- Limited by message rate
