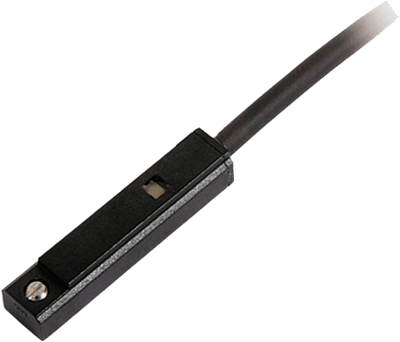

Adsens CS-53 Magnetic Sensor - for SMC T-Slot (Slide-In Type)
Brand: Adsens Technology IncSpecifications
Wiring Method
- 2-Wire Type
- 3-Wire Type
Switching Logic
- Solid State Output, Normally Open
- SPST, Normally Open
Sensor Type
- PNP Current Sourcing
- NPN Current Sinking
- Reed Switch
Operating Voltage
- 10~30 Vdc/AC
- 10~30 Vdc
- 5~240 Vdc/AC
Switching Current
- 500 mA Max.
- 100 mA Max.
Contact Rating
- 3 W Max.
- 10 W Max.
Current Consumption
- 10 mA @ 24 Vdc Max.
- 8 mA @ 24 Vdc Max.
Voltage Drop
- 0.1 V @ 100 mA Max.
- 1.5 V Max.
- 3.5 V Max.
Leakage Current
- 0.01 mA Max.
Indicator
- Yellow LED
- Red LED
Operating Frequency
- 1000 Hz
- 200 Hz
Magnet Requirement
- 50 Gauss Parallel
- 70 Gauss Parallel
Temperature Range
- -10~70° C (+14~158° F)
Shock
- 50 G
- 30 G
Vibration
- 9 G
Enclosure Classification
- IEC 60529 IP67 (NEMA 6)
