AST Plug & Play Accelerometer, 13207A, 23207A

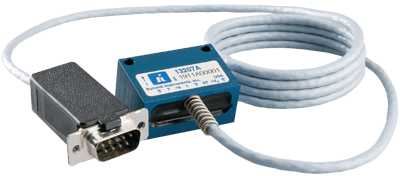

Images are representations only.

13207A, 23207A Plug & Play Accelerometer

Brand: American Sensor Technologies Inc

The 13207A and 23207A accelerometers include a temperature sensor in their small, rugged package.

The small size and built-in power regulation allow the 13207A and 23207A to fit where other accelerometers can’t. Choose the bandwidth and range options best suited for your application to measure ±10g, ±20g, ±30g, ±40g, ±50g, ±60g, or ±70g accelerations on one or two axes. The high repeatability of the built-in temperature sensor allows precise compensation of temperature effects.

Alignment data provided on the included calibration certificate can be used to manually correct transverse sensitivity and alignment errors, or when extra precision is required, Option C002, offset compensation is available. Tested over the -40° to 85° C temperature range, the accelerometers have a nominal full scale output swing of ±2 Volts.

The zero g output level is nominally +2.5 Volts. Precise values are available on the included calibration certificate. Custom versions of the 13207A and 23207A can be provided for applications which require different range and/or bandwidth.

Specifications

Brand

Accuracy

  • ± 1° C (± 1.8° F)
  • 0.2 % of Full Scale Reading - Non-Linearity

Constant Acceleration

  • ± 70 G

Electrical Connectors

  • 3 x AWG 24

Enclosure, Body Material

  • Aluminum - Anodized

Excitation Voltage

  • 8.5-36 V

Frequency

  • 0 to 10,000 Hz

Input

  • 15 mA

Input Impedance

  • 10 kΩ

Mounting

  • Screw Mount

Output

  • ± 2 V - FSO Voltage
  • 0.5 - 4.5 V - Output Voltage Swing

Output Noise

  • 4 mg/√Hz

Sensitivity

  • ± 0.25 % - Transverse Sensitivity
  • ± 29 mV/g
  • 6.45 mV/°C

Shock

  • ± 4,000 G - Shock Survival

Supply Voltage

  • ± 80 V - Input Voltage
  • 8.5-36 V - Input Voltage - Operating

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Vibration

  • MIL-STD-704A
