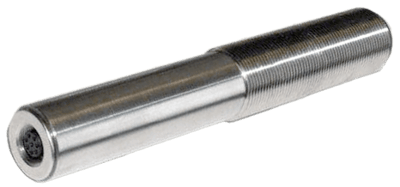

TPT300V Thermopile Infrared Sensor
Brand: American Sensor Technologies IncTPT300V Thermopile Infrared Sensor
Brand: American Sensor Technologies IncTPT300V is a contactless temperature measuring system called pyrometer based on the detection of infrared radiation.
TPT300V is equipped with a lens and an infrared sensor (Thermopile) in front. It has to be pointed at the target object. The basic working principle is: Detection of infrared radiation with a Thermopile sensor, further Analog signal processing, calculation of the objects temperature using a microcontroller, and providing the objects temperature at digital or Analog output
Features- Contactless Temperature Measurement
- High Accuracy
- Wide Temperature Range
- Digital and Analog Interface
- Industrial Usage (IP 65)
Specifications
Accuracy
- ± 1 % of Full Scale at ± 3° C
- ± 1.5 % of Full Scale at ± 4.5° C
Ambient Temperature Range
- 0° to 85° C (32° to 185° F)
Approvals & Certifications
- CE
- RoHS
Communication
- 8-bit - Digital Output Settings
- Baud Rate: 9,600 bit/sec - Digital Output Settings
Current
- 22 mA - Supply Current
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP65
Frequency
- 0.1 to 10 Hz Adjustable - Digital Output Rate
Interface Connection
- RS-232
Output
- 0.2 to 4.8 V to Analog Output Range
Output Format
- Object & Ambient Temperature
Resistance
- 40 ohms - Analog Output Source Resistance
Resolution
- 0.3° C
Response Time
- 100 milliseconds - Output Rate
Rotation
- ± 5° - Sensor Field of View
Storage Temperature
- -20° to 85° C (-4° to 185° F)
Supply Voltage
- 9-24 V
Temperature Range
- 0° to 300° C (32° to 572° F)
- Contactless Temperature Measurement
- Industrial Process Control
