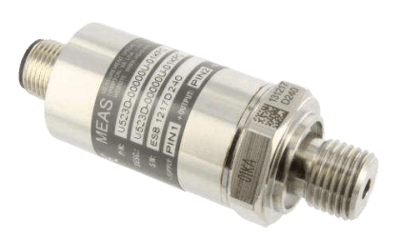

U5200 Industrial Pressure Transducer
Brand: American Sensor Technologies IncU5200 Industrial Pressure Transducer
Brand: American Sensor Technologies IncThe U5200 pressure transducers from the UltraStable line of MEAS, with their modular design, offer maximum flexibility for different configurations.
This latest series features high accuracy and a quick turnaround for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.
The wetted material is made of 316L stainless steel and the transducer’s durability is excellent with no O-rings or organics exposed to the pressure media. The U5200 is weatherproof and exceeds the latest heavy industrial CE requirements including surge protection. The circuit is protected from reverse wiring at input and short circuit at output.
This product is geared to the OEM customer for low to mid volumes. MEAS stands ready to provide a custom design of the U5200 where the volume and application warrants. Additional configurations not listed are either available or possible. Please inquire for further information.
Features- Heavy Industrial CE Approval
- 10 V/m EMI Protection
- Reverse Polarity Protection on Input
- Short Circuit Protection on Output
- Up to ±0.1% Accuracy
- Up to ±0.75% Total Error Band
- Compact Outline
- -40°C to 125°C Operating Temperature
- Weatherproof
Specifications
Accuracy
- ± 0.1 % of Full Scale BFSL
- ± 0.75 % (Total Error Band)
Approvals & Certifications
- CE
- IEC
BSP Connection
- 1/4”-19 BSPT Female
- 1/4” BSPP Female
- 1/4” BSPP Male
- 1/4” BSPT Male
- G 1/4” Male (DIN 3852 Gasket)
- G 1/4” Male B2351
- G 3/8” Male
Burst Pressure
- 4 times for psi: 20,000 (kPa: 137,900, bar: 1,379)
Compensated Temperature
- -20° to 85° C (-4° to 185° F)
Consumption
- 5 mA
Electrical Connectors
- 1/2” NPT Conduit
- 10 feet (3 metres)
- 16.4 feet (5 metres)
- 2 feet (0.6 metres)
- 22 AWG
- 3 feet (1 metre)
- 33 feet (10 metres)
- 4 feet (1.2 metres)
- 6.5 feet (2 metres)
- AMP
- Bayonet
- DIN 3852
- DIN 3869-14
- DIN EN 175301-803 Form A
- Hirschmann A
- Hirschmann C
- M10 x 1 Male
- M12 Plug
- M12 x 1.5 Male
- M14 x 1.5 Male
- M20 x 1.5 Male
- Packard
- Packard B
- Sumitomo
Enclosure, Body Material
- 316L Stainless Steel
Environmental Protection
- IP65
- IP66
- IP67
- Weatherproof
Isolation
- 100 megaohms at 500 Vdc
Loop Resistance
- > 100 kiloohms
NPT Connection
- 1/4” NPT Male
- 1/8” NPT Female
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output
- 0.02 A
- 0.5 - 4.5 V Ratiometric
- 0.5 - 5 V
- 0-10 V
- 0-5 V
- 1-5 V
- 1-6 V
- 4-20 mA
Power Requirement
- 2 mA at 500 Vac
Pressure Cycles
- > 10 Million
Pressure Range
- psi: 0 to 10,000 (kPa: 0 to 69,000, bar: 0 to 690)
Pressure Type
- Absolute
- Compound
- Gauge
- Sealed Gauge
Proof Pressure
- 3 times for psi: 20,000 (kPa: 137,900, bar: 1,379)
Response Time
- > 3 milliseconds
RFI/EMI Protection
- 10 V/m
Shock
- 50 G, 11 milliseconds Half Sine Shock Per MIL-STD-202 G, Method 213B, Condition A
Stability
- ± 1 % of Full Scale Per Year
- ± 1.25 Full Scale Per Year
Storage Temperature
- -40° to 125° C (-40° to 250° F)
Supply Voltage
- 12-30 V
- 5 - 30 V
- 5 ± 0.25 V
- 8 - 30 V
- 9-30 V
UNF/UNC Connection
- 7/16”-20 UNF Female
- 7/16”-20 UNF Female with Integral Valve
- 7/16”-20 UNF Male
Vibration
- ± 20 G MIL-STD-810C, Procedure 514.2, Curve L
Wetted Materials
- 316L Stainless Steel
- Industrial Process Control and Monitoring
- Advanced HVAC Systems
- Refrigeration Systems
- Automotive Test Stands
- Off-Road Vehicles
- Pumps and Compressors
- Hydraulic/Pneumatic Systems
- Agriculture Equipment
- Energy Generation and Management
