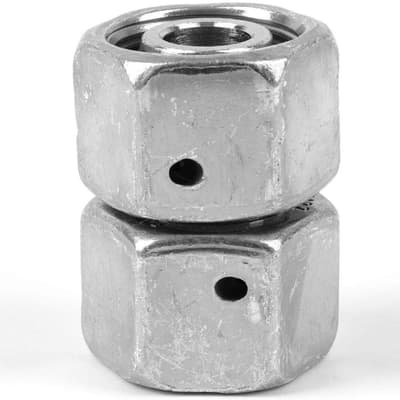

DIN Swivel to Swivel High Pressure Hydraulic Tube Fittings
Brand: ErmetoDIN Swivel to Swivel High Pressure Hydraulic Tube Fittings
Brand: ErmetoThe main function of Ermeto DIN swivel-to-swivel high pressure hydraulic tube fittings is the connection of 2 tubes or hoses.
This broad range of fittings is available in steel with Cr(VI)-free surfaces and in stainless steel. .
Specifications
Brand
Applications
- Agriculture Equipment, Automotive Process, Chemical Transfer, Construction Equipment, Fuel Transfer, Hydraulic, Manufacturing Equipment, Marine, Material Handling, Mobile Equipment, Oilfield, Packaging, Transportation
Connection 1 Style
- EO 24° DKO Swivel
Connection 1 Tube O.D. (mm)
- 06-42
Connection 2 Style
- EO 24° DKO Swivel
Connection 2 Tube O.D. (mm)
- 06-42
Connection Type
- Bite Typical, Soft Seal Bite Typical
Industry Standards
- DIN ISO 8434
Material
- Steel Zinc-Plated (CrVI-free), Stainless Steel
Maximum Working Pressure (bar)
- 160-800
Maximum Working Pressure (Mpa)
- 16-80
Maximum Working Pressure (psi)
- 2321-11603
Maximum Working Temperature (°C)
- +250° Steel, +400° Stainless Steel
Maximum Working Temperature (°F)
- +482° Steel, +752° F Stainless Steel
Minimum Working Temperature (°C)
- -40° C Steel, -60° C Stainless Steel
Minimum Working Temperature (°F)
- -40° Steel, -76° F Stainless Steel
Series
- Light, Heavy, Light/Heavy, Heavy/Light
Shape
- SwivelNut Straight, SwivelNut Straight Reducer
Tube O.D. (mm)
- 6-42
