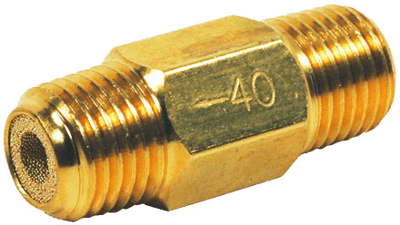

Adsens NIF Series - Nipple In-Line Filter
Brand: Adsens Technology IncNIF-Series nipple inline filter is compact, lightweight and inexpensive to install at the point of use.
Unit construction features a unique conical shaped porous sintered bronze filter element in a brass nipple fitting. Conical filter provides larger filtering surface and uninterrupted axial flow than typical disc filter.
The porous sintered bronze element is available in 40 or 90 microns; element can not be replaced and must be disposed upon end of its service life. Common usages are filtration for air, oil and water.
Specifications
Body Material
- Brass
Element Material
- Sintered Bronze (40 or 90 micron)
Maximum Operating Pressure
- 300 psi (21.1 kg/cm²)
Operating Temperature
- 35° to 300° F (1.6° to 149° C)
