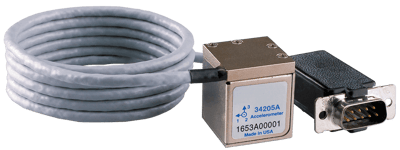

34205A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe 34205A accelerometer provides the accuracy required by most measurement applications without any compensation.
Critical applications requiring higher accuracy can use the alignment data provided on the calibration certificate to compensate for any small residual error. Choose the bandwidth and range options best suited for your application to measure ±5 g, ±10 g, ±20 g, ±25 g, ±30 g, ±40 g, or ±50 g accelerations on each of three axes.
Each axial sensor has been tested over the -40° to 85° C temperature range and has a nominal full scale output swing of ±2.25 volts. The zero g output level is nominally +2.5 volts. Precise values for each axis are available on the included calibration certificate.
Specifications
Accuracy
- ± 0.15 % of Full Scale Reading - Non-Linearity
- ± 1° C (± 1.8° F)
Frequency
- 0 to 2,000 Hz - Frequency Response
Input
- 33-50 mA - Input Current
- 8-18 V - Input Voltage (Operating)
Mounting
- Mounting Holes
Output
- 0.50-4.50 V - Output Voltage Swing
Output Noise
- 10 μg/√Hz - Noise Density
- 50 μg/√Hz - Noise Density
Sensitivity
- 40 mV/g
- 6.45 mV/°C
Shock
- ± 5,000 G
Temperature Range
- -40° to 85° C (-40° to 185° F)
Thermal Drift
- ± 2 % at 25° C - Sensitivity
Zero Offset
- 2.5 ± 0.010 V - Zero G Bias Level
