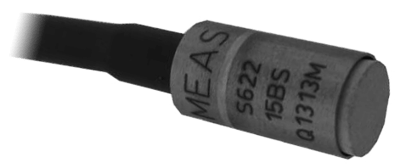

EPB-PW Miniature Pressure Transducer
Brand: American Sensor Technologies IncThe EPB-PW pressure transducer is specifically designed for pore water applications in either centrifuges or laboratory equipment.
Using either ceramic or bronze sintered filters, the sensor can be used on clay or sand-based materials. Made of titanium, the EPB-PW provides a rugged construction and is not affected by external clamping forces when fitted.
Having a miniature design of 6.4 x 11.4 mm ensures it is backwards compatible with other older manufacturers products. This miniature pressure transducer features an IP68 rating, flexible cable and is available with options such as a PT1000 temperature sensor upon request.
The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Centre stands ready to provide a custom design as required.
Features- Porous stones available
- -40°C to +80°C Operating Temperature
- Accuracy up to ±0.5%
Specifications
Accuracy
- ± 0.5 %
Applications
- Centrifuge
- Laboratories
- Pore Water Measurement
Approvals & Certifications
- CE EN 50082-1
- EN 50081-1
- EN 61010-1
Compensated Temperature
- 0° to 60° C (32° to 140° F)
Environmental Protection
- IP68
Materials of Construction
- Titanium
Operating Temperature
- -40° to 80° C (-40° to 176° F)
Pressure Range
- bar: 1 to 70
- kPa: 150 to 7,000
- psi: 15 to 1,000
Pressure Type
- Sealed Gauge
Repeatability
- ± 2.5 % of Full Scale (Non-Repeatability)
Resistance
- 1,000 ohms Nominal - Input Resistance
- 400 ohms - Output Resistance
Sensitivity
- 3-12.5 mV/V
Sensor, Probe Type
- Pt1000
Supply Voltage
- 10 Vdc
Thermal Drift
- ± 2 %/50° C (100° F)
Zero Offset
- ± 10 mV
- Pore Water Measurement
- Centrifuge
- Laboratory
