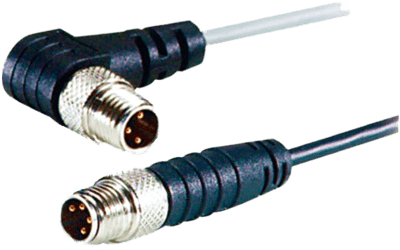

Adsens M8 Male Connector, Swivel Type, 3 or 4 pins
Brand: Adsens Technology IncSpecifications
Number of Contacts
- 3
- 4
Rated Voltage
- 60 Vac/dc
Rated Current
- 3A
Contact Material
- Gold-Plated Brass
Contact Bearer Material
- PU
Housing Material
- PU
Housing Color
- Black
Cable Material
- PVC
- PUR
Cable Color
- Gray
- Black
Cable Conductor
- 24 AWG (0.22 mm²)
Circuit
- 0.177" (4.5 mm)
Protection Class (IEC60529)
- IP67
Temperature Range
- -20~80° C (-4~176° F)
