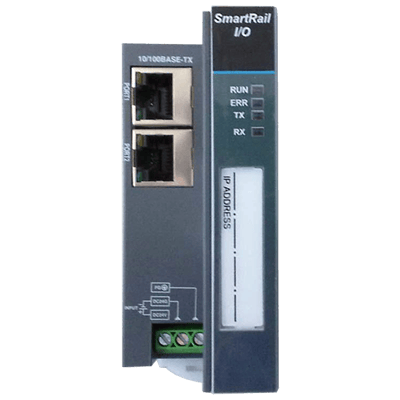

HE599ETX200 SmartRail I/O Ethernet Base
Brand: HornerSmartRail I/O is a real-time, modular I/O system – expanding the application of the OCS family of all-in-one controllers.
The SmartRail I/O Ethernet Base (ETX200) utilizes ethernet communications for the I/O connection with the OCS.
The high-bandwidth, high-speed nature of Ethernet allows a significant amount of I/O to be added while maintaining fast I/O updates.
Any OCS Controller with a built-in 10/100 Ethernet port can utilize ETX200 Base units.
Each Base can support up to 8 SmartRail I/O modules – addressed with up to 256 digital I/O and 32 Analog I/O per base.
The number of bases can expand literally to the limits of the OCS I/O reference table.
These limits are currently set at 2048 digital in, 2048 digital out, 512 Analog in, and 512 Analog out.
The ETX200 features a built-in unmanaged Ethernet switch for convenience of wiring and system expansion.
SmartRail I/O is not complex to configure – it utilizes Cscape (9.1 or later) in an easy, straight forward process.
Specifications
Brand
Approvals & Certifications
- CE
- UL Class I, Div. 2, Groups A, B, C, D
Connectors
- 2 Ports (AutoMDIX)
- RJ45 (8P8C)
Humidity
- 5 to 95 % - Non-Condensing
Length
- Wire Stripping Length: 0.28" (7 mm)
Mounting
- DIN Rail
- M3 Screw Typical, Fixed
Operating Temperature
- -5° to 50° C (23° to 122° F)
Output Power
- 1,500 mA at 5 Vdc
Power
- Primary Power Range: 19.2-28.8 Vdc
Power Requirement
- Steady State: 550 mA at 24 Vdc
Power Supply
- Power Supplied for I/O Modules: 1,500 mA at 5 Vdc, Max.
Storage Temperature
- -40° to 75° C (-40° to 167° F)
Torque
- 0.6 Nm (5.2 in/lb)
Version / Leadwires
- Recommended Wire Size: 14 to 18 AWG (Copper)
