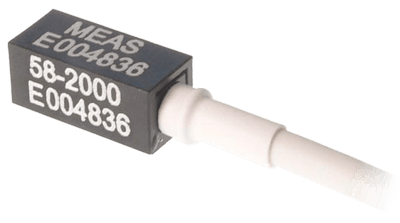

58 Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 58 Accelerometer is a MEMS DC response accelerometer designed for auto safety crash testing.
The accelerometer is packaged in a rugged housing with a shielded low-noise cable specifically designed for crush zone testing. The model 58 accelerometer features a full bridge output configuration with a temperature range from - 20° to 85ºC.
A slight amount of internal gas damping provides outstanding shock survivability and a flat amplitude and phase response up to 4,000 Hz.
Features- 2-10 Vdc Excitation
- Piezoresistive MEMS Sensor
- 0° to 50ºC Temperature Range
- Low Noise Jacketed Cable
- Linearity ±1%
- <±25 mV Zero Offset
- Transverse sensitivity <3%
Specifications
Accuracy
- ± 1 % of Reading - Non-Linearity
Applications
- Crash & Impact Testing
- Crush Zone Testing
- Off-Road Testing
- Transportation Testing
Approvals & Certifications
- CE
- RoHS
Cable Length
- Integral 30 ft (9.14 m)
Electrical Connectors
- 4 x #32 AWG Conductors PFA Insulated
- Braided Shield Cable
Environmental Protection
- IP61
Excitation Voltage
- 2-10 Vdc
Frequency
- 0 to 4,000 Hz
Insulation Resistance
- > 100 MΩ
Mounting
- Adhesive
- Isolated from Mounting Surface
NACE & NIST
- NIST
Operating Temperature
- -20° to 85° C (-4° to 185° F)
Output
- < ± 25 mV - Zero Acceleration Output
Output Noise
- < 10 µV RMS
Resistance
- 2,400 to 6,000 ohms
Sensitivity
- 0.30 to 1.2 mV/g
Shock
- 5,000 G
Storage Temperature
- -20° to 85° C (-4° to 185° F)
Thermal Drift
- ± 0.06 %/°C - Thermal Sensitivity Shift
- ± 0.10 % of Full Scale/°C - Thermal Zero Shift
