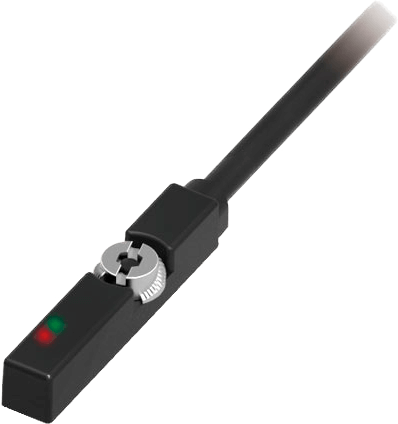

Adsens CS-75 Magnetic Sensor - for T-Slot (Drop-In Type), 2-Color LED
Brand: Adsens Technology IncSpecifications
Wiring Method
- 2-Wire Type
- 3-Wire Type
Switching Logic
- Solid State Output, Normally Open
Sensor Type
- PNP Current Sourcing
- NPN Current Sinking
Operating Voltage
- 10~28 Vdc
Switching Current
- 80 mA Max.
Contact Rating
- 2.5 W Max.
Current Consumption
- 10 mA @ 24 Vdc Max.
Voltage Drop
- 1.2 V Max. @ 25° C
- 4 V Max. @ 25° C
Leakage Current
- 0.05 mA Max.
- 1 mA Max.
Indicator
- Red/Green LED
Cable
- Ø 2.8, 3C, PU
- Ø 2.8, 2C, PU
Operating Frequency
- 1000 Hz
Magnet Requirement
- 50 Gauss
Temperature Range
- -10~60° C (+14~140° F)
Shock
- 50 G
Vibration
- 9 G
Enclosure Classification
- IEC 60529 IP67 (NEMA 6)
