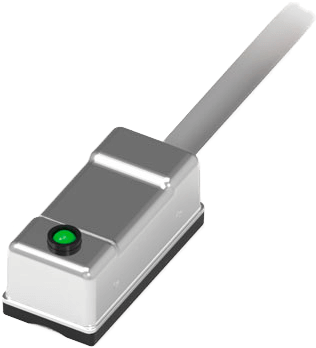

Adsens CS-21 Magnetic Sensor - for Round Type and Tie-Rod Cylinders
Brand: Adsens Technology IncSpecifications
Wiring Method
- 2-Wire Type
- 3-Wire Type
Switching Logic
- SPST, Normally Open
- Solid State Output, Normally Open
Sensor Type
- Reed Switch
- NPN Current Sinking
- PNP Current Sourcing
Operating Voltage
- 5~240 Vdc/AC
- 5~30 Vdc
Switching Current
- 100 mA Max.
- 50 mA max
- 200 mA Max.
Contact Rating
- 10 W max
- 1.5 W Max.
- 6 W max
Current Consumption
- 6 mA @ 24 Vdc Max.
- 15 mA @ 24 Vdc max
Voltage Drop
- 0.5 V max
- 1.5 V Max.
- 3.7 V max
- 3.5 V max
Leakage Current
- 0.1 mA(40uA) max
- 0.01 mA max
Indicator
- Green LED
- Red LED
Cable
- Ø 4, 2C, PVC
- Ø 4, 3C, PVC
Operating Frequency
- 200 Hz
- 1000 Hz max
Magnet Requirement
- 80 Gauss
- 40~1000 Gauss
- 70 Gauss
Temperature Range
- -10~70° C (+14~158° F)
Shock
- 30 G
- 50 G
Vibration
- 9G
Enclosure Classification
- IEC 60529 IP67 (NEMA 6)
