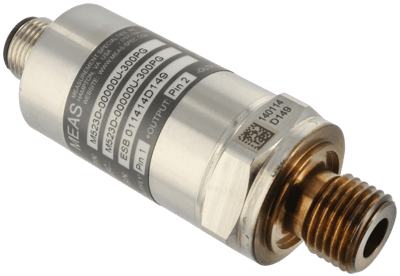

M5200 Industrial Pressure Transducer
Brand: American Sensor Technologies IncThe M5200 pressure transducers from the Micro-fused line of MEAS, with their modular design, offer maximum flexibility for different configurations.
This latest series sets a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.
Features- Heavy Industrial CE Approval
- 10 V/m EMI Protection
- Reverse Polarity Protection on Input
- Short Circuit Protection on Output
- ±0.25% Accuracy
- ±1.0% Total Error Band
- Compact Outline
- -40°C to +125°C Operating Temperature
- Weatherproof
Specifications
Accuracy
- ± 0.25 % of Full Scale BFSL
- ± 1 % - Total Error Band
Ambient Temperature Range
- 25° C (77° F)
Approvals & Certifications
- CE
- CE EN 55022 Emissions Class A & B
- IEC 61000-4-2 Electrostatic Discharge Immunity
- IEC 61000-4-3 Radiated, Radio-Frequency Electromagnetic Field Immunity
- IEC 61000-4-4 Electrical Fast Transient Immunity
- IEC 61000-4-5 Surge Immunity
- IEC 61000-4-6 Immunity to Conducted Disturbances Induced by Radio Frequency
- IEC 61000-4-9 Pulse Magnetic Field Immunity
- RoHS
Bandwidth
- (-3 dB), DC to 1 kHz
BSP Connection
- 1/4"-19 BSPP Female
- 1/4"-19 BSPT Male
- G 1/4" Male JIS B2351
- G 3/8" JIS B2351
Burst Pressure
- psi: 20,000 (kPa: 1,37,900, bar: 1,379)
Compensated Temperature
- -20° to 85° C (-4° to 185° F)
Conduit Connection
- 1/2" NPT
Consumption
- 5 mA
Electrical Connectors
- AMP
- Bayonet
- Cable
- Form A
- Form C
- M12
- Packard
- Sumitomo
Hysteresis
- ± 0.25 % of Full Scale
Isolation
- 100 MΩ at 500 Vdc
Linearization
- ± 0.25 % of Full Scale - Non-Linearity
Load Impedance
- > 100 kΩ
NPT Connection
- 1/4"-18 NPT Male
- 1/8"-27 Male NPT
O-Ring Material
- Buna-N
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Output
- 0.5 - 4.5 V Ratiometric
- 0-10 V
- 4-20 mA
Pressure Range
- bar: 0 to 1,000
- kPa: 0 to 1,00,000
- psi: 0 to 15,000
Pressure Type
- Compound
- Gauge
- Sealed
Repeatability
- ± 0.25 % of Full Scale
RFI/EMI Protection
- 10 V/m
Shock
- 50 G, 11 ms, 1/2 Sine
Stability
- ± 0.25 % of Full Scale
Storage Temperature
- -40° to 125° C (-40° to 257° F)
Supply Voltage
- 5 ± 0.25 V
- 8-30 V
Thread
- M10 x 1.0 mm
- M12 x 1.5 mm
- M14 x 1.5 mm
- M20 x 1.5 mm
UNF/UNC Connection
- 7/16"-20 UNF Male
Update Time
- < 2 ms
- < 3 ms
Vibration
- ± 20 G
Wetted Materials
- 316L Stainless Steel
- 630 Stainless Steel
- Industrial Process Control and Monitoring
- Advanced HVAC Systems
- Refrigeration Systems
- Automotive Test Stands
- Off-Road Vehicles
- Pumps and Compressors
- Hydraulic/Pneumatic Systems
- Agriculture Equipment
- Energy Generation and Management
