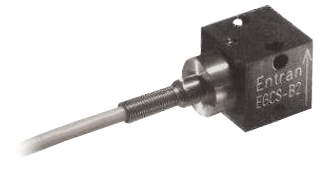

EGCS-B2 Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model EGCS-A2 & -B2 accelerometers are critically damped with built-in over-range stops that are set to protect the unit against 10,000g shocks.
The accelerometers incorporate signal conditioning with optional ±5 Vdc or ±2.5 Vdc amplified full-scale output and are offered in ranges from ±5 to ±5,000 g. The accelerometers are ideal for low frequency measurements and feature temperature compensation from 20°C to 80°C.
Features- ±5 to ±5000 g Dynamic Range
- Heavy Duty, Rugged
- Static and Dynamic Measurement
- DC to 4,000 Hz Frequency Response
- ±1% Non-linearity
- -40°C to 120°C Temperature Range
- 10,000 g Over-range Protection
Specifications
Applications
- Down Hole
- Engine Testing
- General-purpose Usage
- Machine Control
- Road Vehicle Testing
Approvals & Certifications
- CE
Cable Material
- PFA Insulated Leads
Compensated Temperature
- 20° to 80° C (70° to 170° F)
Current
- 15 mA - Max.
Electrical Connectors
- 28 AWG
Enclosure, Body Material
- Aluminum - Anodized
Excitation Voltage
- ± 15 Vdc
- 24-32 Vdc (28 Vdc Nominal)
Frequency
- 0 to 2,400 Hz Min.
- 0 to 4,000 Hz Nominal
- 300 to 8,000 Hz - Natural Frequency
Humidity
- Epoxy Sealed
Insulation Resistance
- > 100 MΩ at 50 Vdc
Measuring Range
- ± 5 to ± 5,000 G
Mounting
- Screw Mount
NACE & NIST
- NIST - Traceable Amplitude Calibration
Non-Linearity
- ± 1 % of Full Scale
Operating Temperature
- -40° to 120° C (-40° to 250° F)
Output
- ± 2.5- ± 5 Vdc - FSO Voltage
- ± 250 mV - Zero Acceleration Output
Output Impedence
- 1 ohm Nominal - A2
- 1,000 ohms Nominal - B2
Sensitivity
- < 3 % - Transverse Sensitivity
- ± 2.5 %/50° C (± 2.5 %/100° F) - Thermal Sensitivity Shift
- 0.5-500 mV/g
Shock
- 500 to 10,000 G
Storage Temperature
- -40° to 120° C (-40° to 250° F)
Thermal Drift
- ± 50 mV/50° C (± 50 mV/100° F) - Thermal Zero Shift
